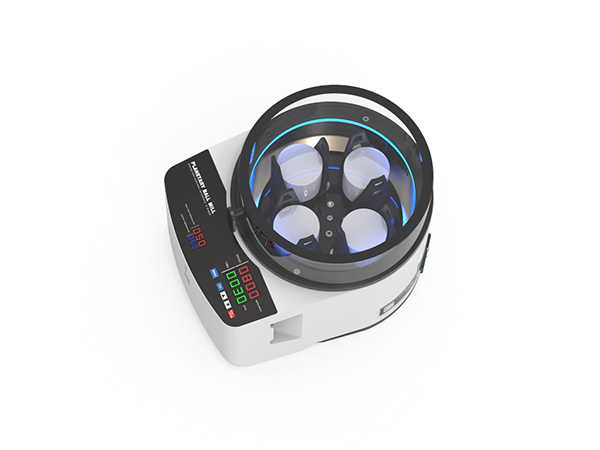

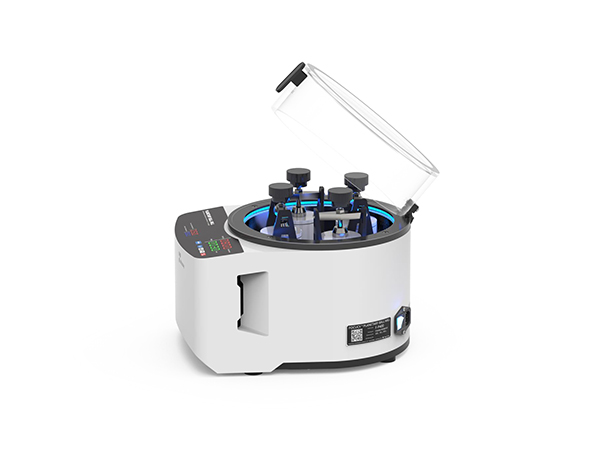

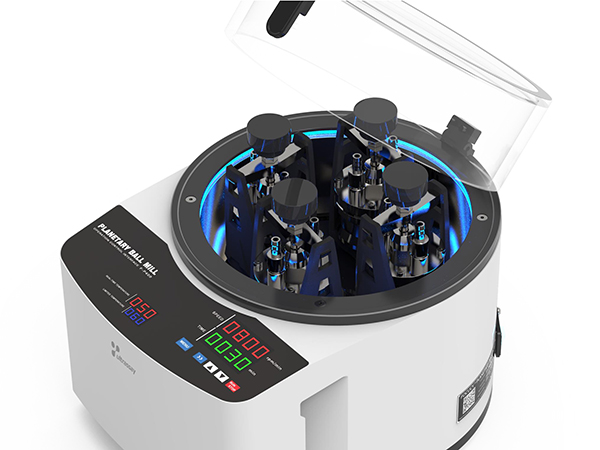

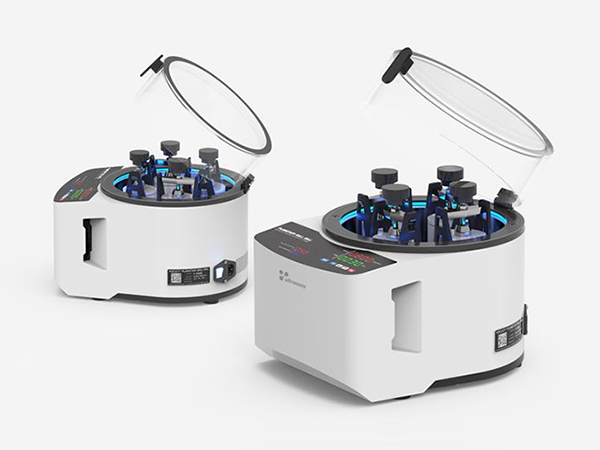

The principle of planetary ball mill is the high frequency and high-intensity collision, shearing and friction between the grinding medium and the sample under the action of the geometric structure and special movement mode of the grinding carrier, which finally makes the sample achieve extremely excellent grinding effect, with the characteristics of fast processing speed, small sample size, uniform and consistent.

• The most small size only has 300x370x300mm, that can be placed on the table or in the Anaerobic Incubator;
• Ergonomic structure and unique appearance design;
• 1000rpm high rotation, 500rpm high revolution, sample fineness can reach 0.1-20um;
• The experiment was consistent and reproducible;
• Equipped with 10mm thick visual cover for safety and sound insulation;
• More durable soft-button microcomputer digital control interface, simple and easy to operate, no need to debug, plug and play;
• The instrument can realize the functions of timing, speed regulation, pause, continuous, intermittent, positive and negative alternating grinding, temperature monitoring, high temperature protection, overload protection and so on;
• 304 stainless steel grinding chamber, planetary discs, presser and polymer synthesis planetary positions provide a pollution-free and non-magnetic grinding environment;
• 2 or 4 ball mill jars with a volume of 100ml or less can be used simultaneously;
• Zirconia, tungsten carbide, agate, PTFE and other ball mill jars of different materials can be selected for use, suitable for dry grinding and wet grinding;
• Vacuum ball mill or sealed ball mill are optional for inert gas shielded grinding;
• Liquid nitrogen system can be added for grinding in a cooling environment;
• Low power, safe to use, long service life, easy maintenance.
