UltraNano Pro Spectrophotometer does not require a computer that equipped full wavelength (190-850nm) micro spectrophotometer. It can quickly and accurately detect nucleic acids, proteins and cell solutions. And equipped with a colorimetric dish mode for detecting bacterial and other culture medium concentrations, with a minimum limit of 0.5ng/uL(dsDNA).
Introduction
- Light source flicker: The flicker frequency of the light source is short, which increases the service life of the light source compared to traditional detection methods.The light intensity stimulation is small, and the test sample can be detected faster and is not easily
degraded; - Adopting 4 optical paths detection technology: unique motor control technology, By using “4” optical paths detection method, with
better stability, repeatability, linearity, and larger measurement range; - Sample contraction: The sample does not need to be diluted, and the concentration range of the measurable sample is more than 50 times that of a conventional UV visible spectrophotometer;

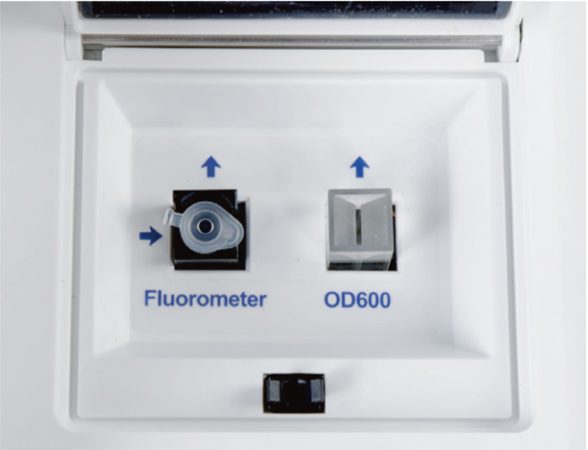

- Fluorescence function: paired with fluorescence quantitative reagents, it can detect pg level concentration of dsDNA;
- Built-in printer: With a simple and easy-to-use data to printer option, you can directly print reports through the built-in printer;
- Operating system:An independently developed Android operating system with a 7-inch capacitive touch screen, which does not
required a computer to be connected and can be tested on a single machine.
Application Range
260nm: dsDNA, ssDNA, RNA 595nm: Bradford
280nm: A280, BSA, IgG, Lysozyme 600nm: Bacterial concentration
562nm: BCA 650nm: Lowry
Application of different florscence channel
Channel | Excitation Filters | Normal Kits | Application |
UV channel | 365 20nm | Hoechst 33258, 4-MU, EnZCheK Caspase | Nuclear acid quantification, Plant GUS reporter gene detection, Poptosis detection |
Blue channel | 460 20nm | PicoGreen, oligreen, RiboGeen, GFP, Protein, Fluorescein, Quant-iT | dsDNA, ssDNA, RNA quantificatioon, GFP gene detection, Fluorescen detection, Protein detection |
Green channel | 525 20nm | Rhodamine, Cy3, RFP Vybrant Cytotoxicity | Rhodamine detectioon, Cy-3 fluorescence labeling detection, RFP gene detection, Cell activity position detectioon |
Red channel | 625 20nm | Cy5, Quant-iT RNA | Cy-5 fluorescence labeling detection, RNA quantification |
Technical Specification
Type | UltraNano Pro |
Wavelength range | 190-850nm |
Minimum sample size | 0.5-2.0μl |
Path length | 0.02mm, 0.05mm, 0.2mm, 1.0mm |
Light source | Xenon flash lamp |
Detector type | 2048-Linear CCD array |
Wavelength accuracy | 1nm |
Spectral resolution | ≤1nm |
Absorbance precision | 0.002Abs |
Absorbance accuracy | 1% (7.332Abs at 260nm) |
Absorbance range | 0.02 – 300A |
Detects nucleic acid up to | 2-27500ng/ul (dsDNA) |
Measurement time | <6S |
Data output | USB |
Sample pedestal material | Aluminum alloy and Quartz fiber |
Operating voltage | 24V DC |
Operating power | 25W |
Standby power | 5W |
Dimension (WxDxH)mm | 200x260x165 |
Weight | 5.0kg |
Software compatibility | Android System |
Fluorescent detection | |
Sensitivity | dsDNA: 0.5pg/ul |
Linear dynamic range | R2≥0.995 |
Repeatability | ≤1.5% |
OD600nm measurement | |
Light source | LED |
Wavelength range | 600±8nm |
Absorbance range | 0-4A |
