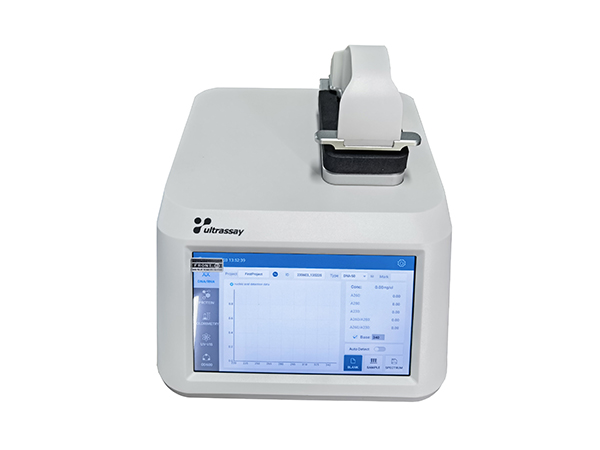

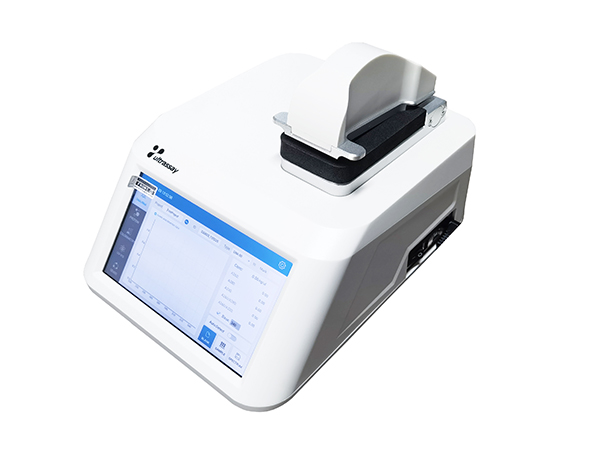

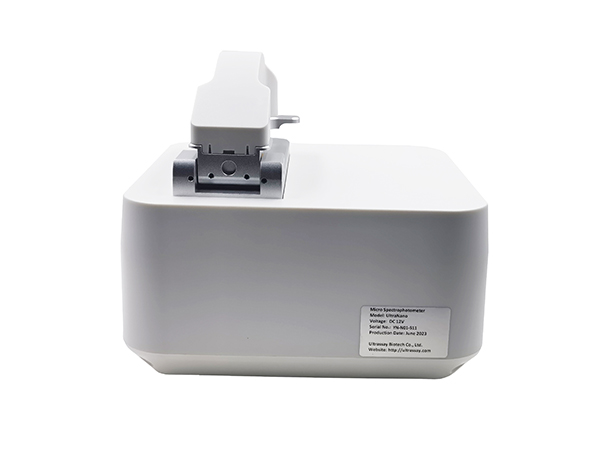

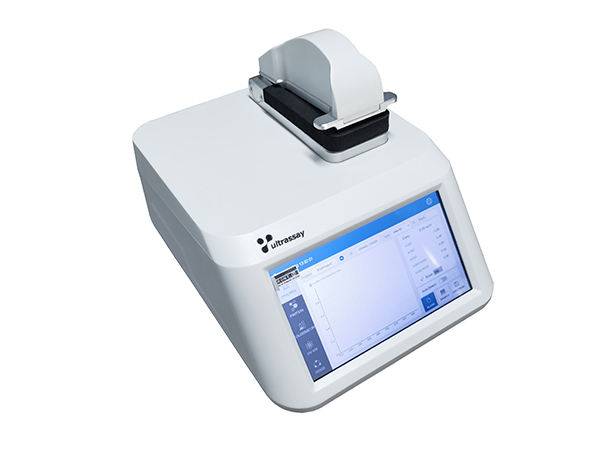

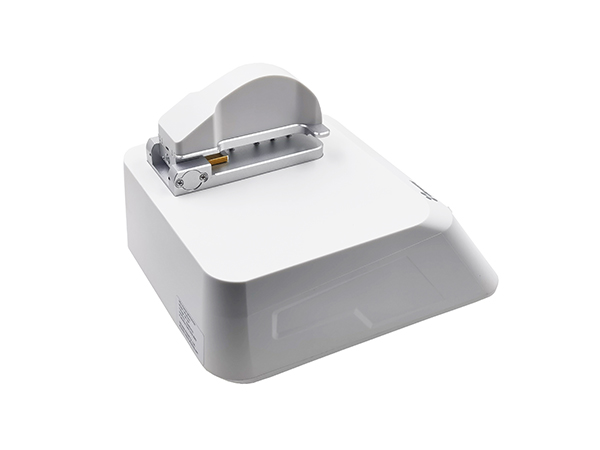

UltraNano Micro Spectrophotometer is a full spectrum UV-Vis spectrophotometer, which requires 0.5 to 2.0µl of sample. In addition to nucleic acid and protein calculations, the software has preset programs for BCA, Bradford and Lowry assays. A full spectrum analysis can be performed within 6 seconds, aiding in the identification of unknowns. The long life Xenon lamp source requires no warm up and is paried with a highly sensitive CCD detector. To provide the most accurate results, the UltraNano Spectrophotometer utilizes 3 path lengths.
Introduction
- Friendly Android operation system, 7-inch touched screen
- Cuvette slot available for bacteria/microbe concentration test
- Measurement without dilution, test result display and read easily
- Long life’s Xenon flash lamp
- Reliable and quick data USB output for analysis
- No computer required for measurement and data storage
- Image and excel table can be output
- External printer is optional
- Only 0- 2μl sample volume requested, which can be recycled after test, ideal for precious samples
Technical Specification
Model | UltraNano |
Sample Volume | 0.5~2.0μL |
Light Source | Xenon flash lamp |
Wavelength Accuracy | 1nm |
Absorbance Precision | 0.003Abs |
Dimension (W×D×H) | 270×210×196 (mm) |
Nucleic Acid Range | 2~15000ng/ul(ds DNA) |

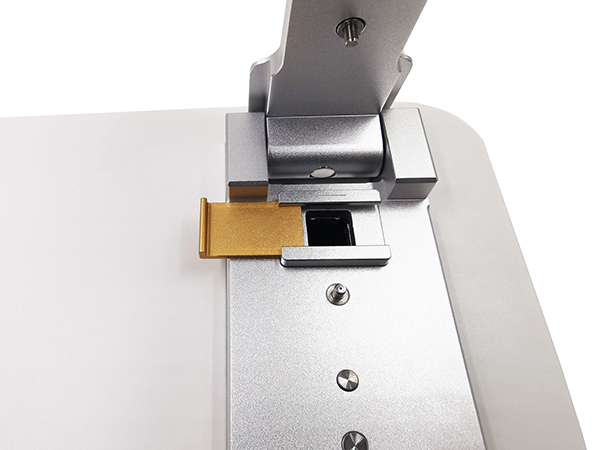

Sample Pedestal | 304 Stainless steel and Quartz Fiber |
Power | 48W |
Operation System | Android |
Path Length | 0.05mm, 0.2mm, 1.0mm |
Detector | 2048 -element linear silicon CCD array |
Spectral Resolution | ≤3nm (FWHM at Hg 546nm) |
Absorbance Accuracy | 1% (7.332 Abs at 260nm) |
Absorbance Range (equaled 10mm) | 0.02-300A; Cuvette (OD600 ): 0~12A |
Wavelength | 200 – 800nm; cuvette (OD600): 600±8nm |
Measurement Time | <6S |
Data Export | USB |
Power Adapter | 12V 4A |
Standby Power | 5W |
Weight | 3.5kg |
