VS Series Vertical Autoclave

YBOTECH VS series Vertical Autoclave is suitable for sterilizing instruments, textile, glassware, medium, rubber, liquid, wastes and more, widely used in the biomedical research institution, laboratory and medical health center.

SAFETY DEVICES
  • Self-induction interlocking devices to avoid risk of misuse;
  • Dual over pressure protection system: upon detection of any abnormal pressure, system will relieve pressures or disconnect power supplies;
  • Over temperature protection system: power supply will be disconnected for protection upon detection of over temperature;
  • Dry scorch protection system: power supply will be disconnected for protection upon detection of over-low water level;

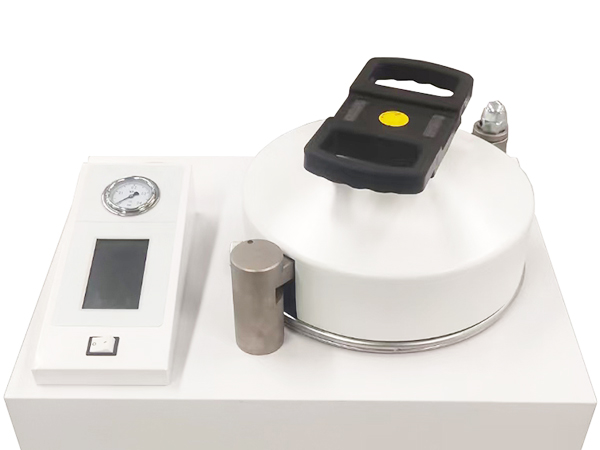

  • Cover checking system: system can automatically check the locking of the cover, if the cover is not tightly locked, the autoclave can’t be started;
  • Electric leakage, over current and short circuit protection: system will disconnect the power supply to avoid an electricity shock or other accidents;
  • Unique anti-scald cover and bench: nick look and avoid causing corrosion and scald.
MAIN FEATURE
  • Microcomputer control system
  • Sterilization process can be preset and completed automatically
  • Built-in fabric, instruments, rubber, liquid, custom and other sterilization programs;
  • System automatically monitors the discharging of the cold air to guarantee a pure steam sterilization environment and optimal sterilization effects

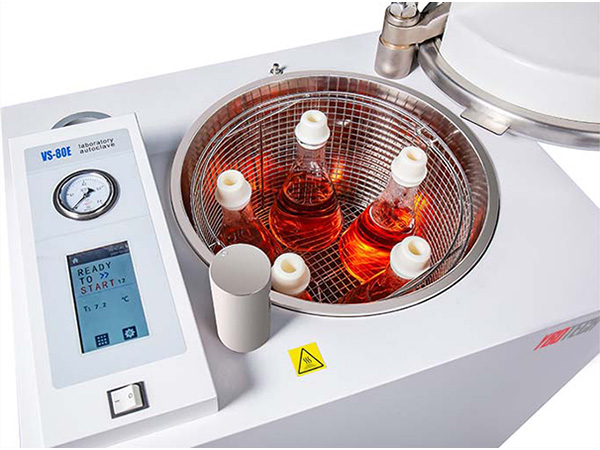

  • LCD touch screen / LED screen clearly shows the dynamic sterilization process, easy operation;
  • Back pressure protection system: The cooling stage through the external compressed air, to ensure that the sterilized items are effectively protected.
  • Rapid cooling system: Brand new water cooling system, rapid cool the chamber temperature by 30~40°Cin 3 minutes;
  • Power off holing system: Power off holding function, after the re-connecting the power, automatically resume from the program breakpoints.
Technical Specification
Model

VS-50E

VS-50C

VS-50EF

VS-80E

VS-80C

VS-80EF

VS-100E

VS-100C

VS-100EF

VS-120E

VS-120C

VS-120EF

VS-150E

VS-150C

VS-150EF

Capacity (L)

50

80 100 120

150

Overall Dimension (mm)

476x616x990

546x688x1030 546x688x1220 700x850x1020

700x850x1180

Chamber Size ΦxL (mm)

316×667

386×700 386×900 500×620

500×780

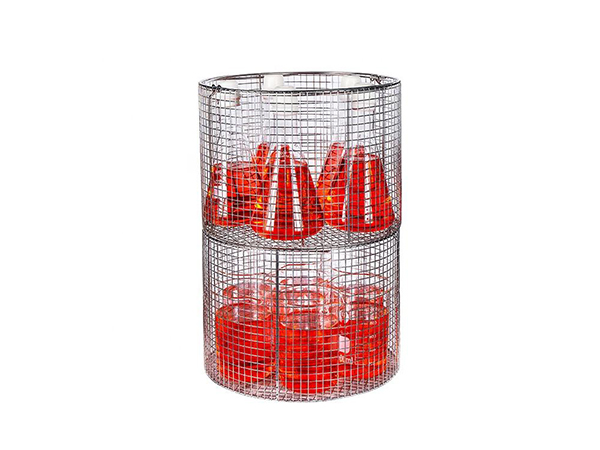

Basket ΦxLxQty (mm)

285x255x2

365x265x2 370x355x2 470x254x2

470x330x2

Net Weight (kg)

68/68/85

92/92/95 100/100/112 175/175/180

195/195/210

Power Supply

220V, 50Hz

380V/220V, 50Hz

Power Consumption

3.0

4.5 5.4 8.0

9.3/9.3/9.8

Working Environment

5°C~40°C, relative humidity 10%~85%

Chamber Material

SUS304 / SUS316L (optional)

Sterilization Temperature

105°C~136°C

Design Temperature

140°C

Sterilization Time

1~300 minutes

Drying Time

1~300 minutes

Pressure Display Range

0~0.4Mpa

Controller

Microcomputer control system

Safety Device

Self-induction interlocking device, over temperature protection system, dry scorch protection, over pressure protection, safety valve, over current and short circuit protection, cover checking system, electric leakage protection, scald protection, automatic failure inspection system.

Standard Accessories

SUS304 (316L optional) basket 2pcs, Built-in water tank, water plate, drainage hose

Optional Parts

Built-in printer

Remark

E: LCD touch screen, C: LED display, EF: LCD touch screen with cooling system
