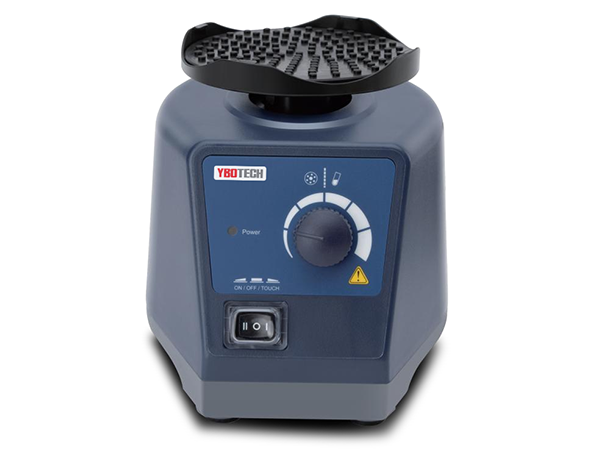

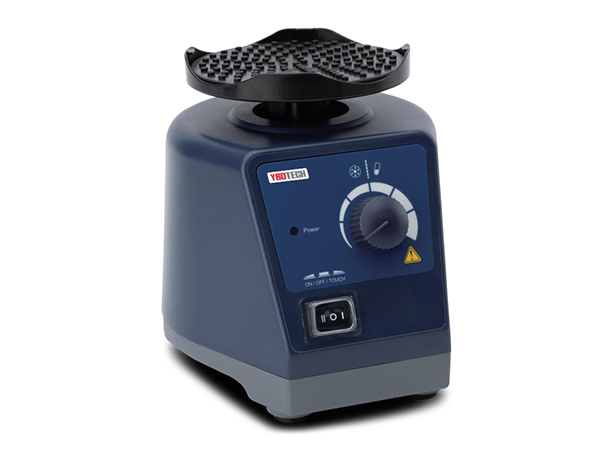

Vortex Mixer MX-S

YBOTECH Vortex Mixer MX-S is a simple device used commonly in laboratories to mix small vials of liquid. It consists of an electric motor with the drive shaft oriented vertically and attached to a cupped rubber piece mounted slightly off-center. As the motor runs the rubber piece oscillates rapidly in a circular motion. When a test tube or other appropriate container is pressed into the rubber cup (or touched to its edge) the motion is transmitted to the liquid inside and a vortex is created. Most vortex mixers are designed with 2 or 4-plate formats, have variable speed settings ranging from 100 to 2,800 rpm, and can be set to run continuously, or to run only when downward pressure is applied to the rubber piece.

Main Feature
  • Touch operation or continuous mode
  • Variable speed control from 0 to 3000rpm
  • Used for various mixing applications with optional adapters
  • Specially designed vacuum suction feet for body stablility
  • Robust aluminum-cast construction
Technical Specification
Specifications Vortex Mixer MX-S
(Adjustable speed)
Voltage 110-120V/220-230V,50/60Hz
Power 60W
Mixing motion Orbital
Orbital diameter 4mm
Motor type Shaded pole motor
Motor rating input 58W
Motor rating output 10W
Speed range 100-3000rpm
Speed display Scale
Run type Touch operation/Continuous
Dimension[W×H×D] 127×130×160mm
Weight 3.5kg
Permissible  ambient temperature 5-40 °C
Permissible relative humidity 80%RH
Protection class IP21
Accessories of Vortex Mixer MX-S
Cat. No. P/N Descriptions
18900034 VT1.1 Standard top cup,for <Ø30mm tubes and small vessels

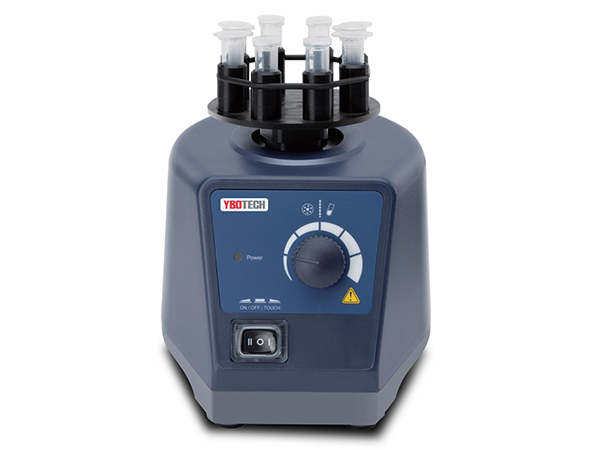

18900044 VT1.2 Tube holding rod, used with VTI.3.1 to VTI.3.5
18900035 VT1.3 Universal top plate,100mm plate attachment , free of Rubber vacuum suction foot (18900158, 4pcs)

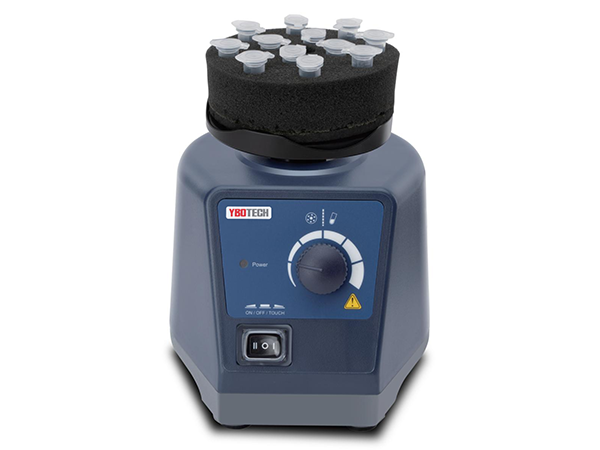

18900020 VT1.3.1 Tube adapter, for 48 holes test tubes, Ø6mm, used with VT1.3/ VT1.2/PS1.1
18900021 VT1.3.2 Tube adapter, for 15 holes test tubes, Ø10mm, used with VT1.3/ VT1.2/PS1.1
18900022 VT1.3.3 Tube adapter, for 16 holes test tubes, Ø12mm , used with VT1.3/ VT1.2/PS1.1
18900023 VT1.3.4 Tube adapter, for 8 holes test tubes, Ø16mm, used with VT1.3/ VT1.2/PS1.1
18900024 VT1.3.5 Tube adapter, for 8 holes test tubes, Ø20mm, used with VT1.3/ VT1.2/PS1.1
18900043 VT1.3.6 Platform pad, for <Ø99mm tubes and small vessels
18900158 VT1.3.7 Rubber vacuum suction foot with screw, 1pc
