Ultrassay® WD-9413B Gel Imaging & Analysis System applies to observe, take photos and analyse testing results of nucleic acid and protein electrophoresis.

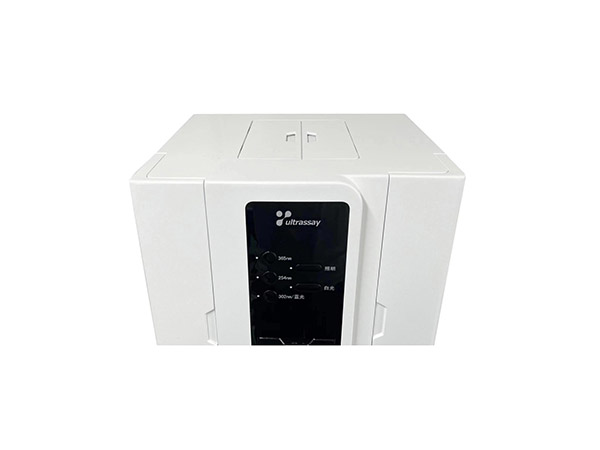

WD-9413B Gel Imaging & Analysis System
Feature
- Dark chamber, no need dark room, can be used in all-weather;

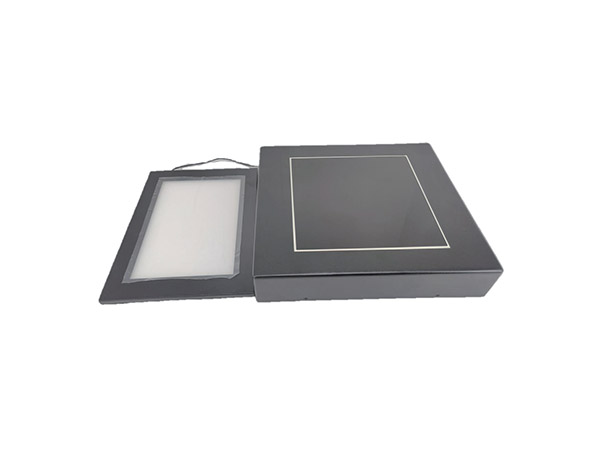

- Drawer-type light box, convenient to use and avoid contamination;
- Real time preview and manual focus function;
- UV filter: Compatible with EB special super multi layers coated filter;
- Compatible with various image formats: tif, jpg, bmp, gif;
- Can directly cut gel in dark chamber.
Powerful Analysis Software
- The image processing function;
- 1D analysis function;
- Clone counting;
- Colony and spot hybridization;
- Data results with MS Excel seamless connection;
- Software can be used for Windows7/Windows10.
System Configuration
- Imported high resolution digital camera;
- Imported professional analysis software;
- High configuration computer;
- High resolution colorful ink-jet printer.
Technical Specification
- Effective pixels: 1.3 megapixels (5 or 6.4 megapixels with 6 times zoom lens optional);
- Pixel Size: 5.2μm(H)×5.2μm(V) (8 bit);
- The speed of shutter: 1-2000ms;
- Able to professionally analyse the result of 1D, colony and spot hybridization.
Product Specification
| L458 * W445 * H755mm | |
| Transmission UV Wavelength | 302nm |
| Reflection UV Wavelength | 254nm and 365nm |
| UV Light Transmission Area | 252*52mm |
| Visible Light Transmission Area | 260*175mm |
