Capacity: 110g
Readability: 0.01g/0.005g/0.001g

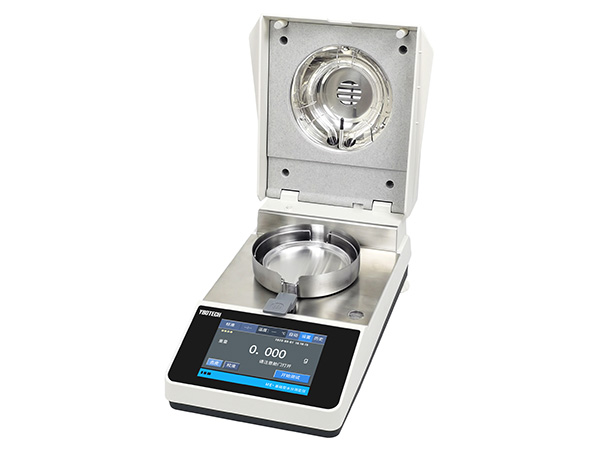

YB-ME Moisture Analyzer
YBOTECH Moisture Analyzer is widely used in industrial, agriculture, laboratory applications. Some typical applications are: tobacco, paper, food, tea, corn, chemical, row materials and textile material etc.
Feature
- 5’’ inch touch screen

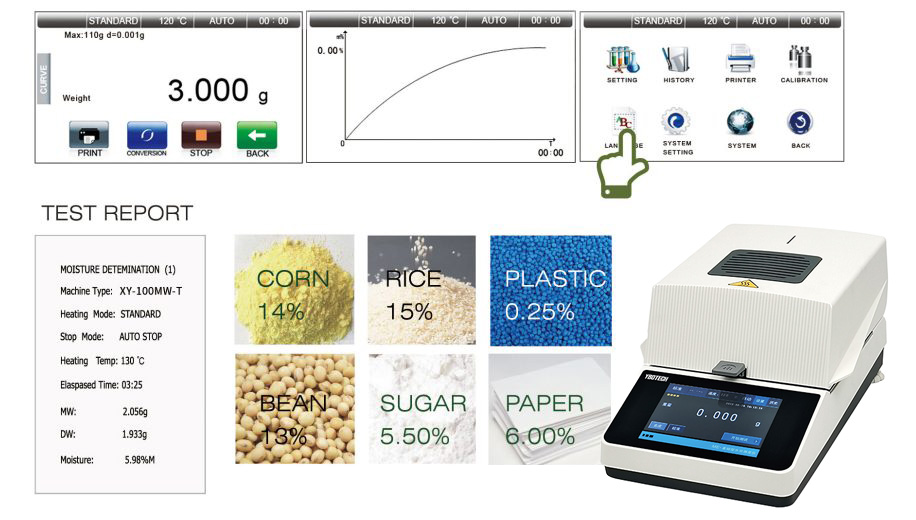

- Real time testing curve
- Standard/Fast/Gentle Mode
- Automatic/Manual/Timed stop mode
- Silent fast cooling fan
- Adaptive input voltage
- Test frequency selection
- Timed function
- Historical test report
Product Specification
| Model | YB-ME110 | YB-ME105 | YB-ME101 |
| Capacity | 110 g | 110 g | 110 g |
| Readability | 0.01 g | 0.005 g | 0.001 g |
| Sensor | Load Cell | HBM | |
| Pan Size | Φ96mm (20pcs) | ||
| Display | 5’’ inch touch screen | ||
| Operate. Temp | 5℃-35℃ | ||
| Heating Source | Halogen lamp | ||
| Temp. Sensor | PT-100-2 | ||
| Temp. Range | 40℃-160℃ | ||
| Temp. Setting | 1℃ | ||
| Moisture. Range | 10.00%-90.00% | 5.00%-95.00% | 0.00%-100.00% |
| Moisture Readability | 0.1% | 0.05% | 0.01% |
| Testing Range | 90.00%-10.00% | 95.00%-5.00% | 100.00%-0.00% |
| DRY% Readability | 0.1% | 0.05% | 0.01% |
| Storage | 20 Groups | ||
| Analysis Curve | Real time dynamic curve | ||
| Testing Height | 30mm | ||
| LANGUAGE | EN/CN | ||
| Power supply | 220V 50Hz / 110V 60Hz | ||
| Dimension | 336X214X166mm | ||
| Packing Size | 415*310*255mm | ||
| G.Weight/N.Weight | 4.0kg/3.5kg | ||
