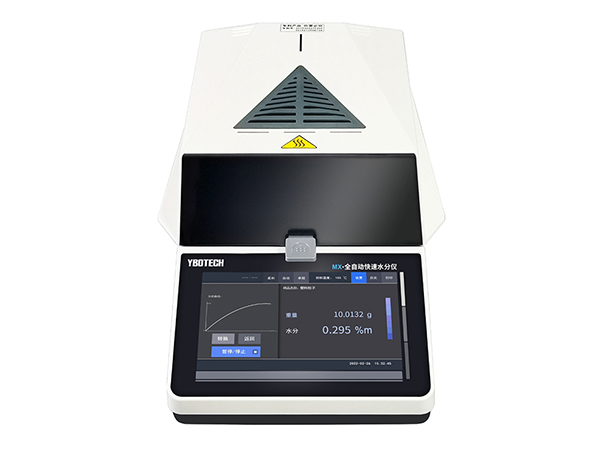

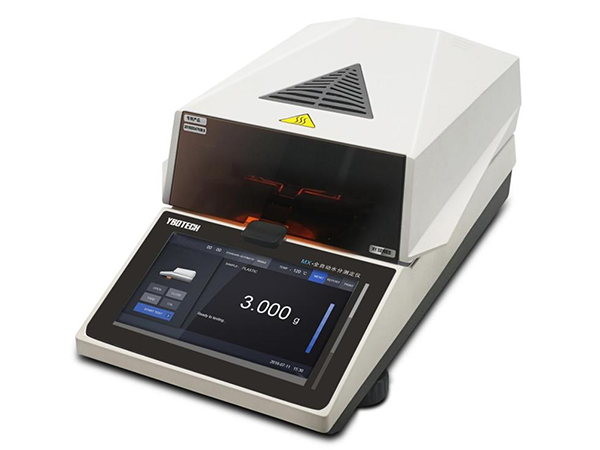

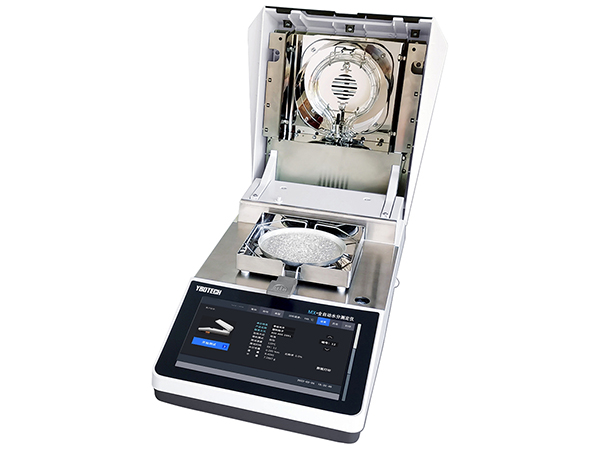

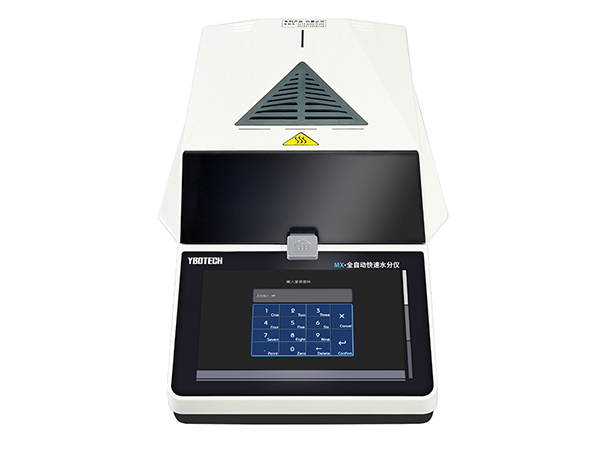

YB-MX Moisture Analyzer

Capacity: 110g

Readability: 0.1mg/0.01mg

YBOTECH Moisture Analyzer is widely used in industrial, agriculture, laboratory applications. Some typical applications are: tobacco, paper, food, tea, corn, chemical, row materials and textile material etc.

Feature
  • Electromagnetic Force Balance Sensor
  • Accuracy 0.1mg
  • Operator Authorization
  • 200 datas storage
  • One-key preheating
  • High performance
  • High standard
  • Micro volume moisture analysis
Product Specification
YB-MX-T7 Series
Model YB-1003MX-T7 YB-1003MX-T7+ YB-1004MX-T7 Pro YB-1004MX-T7 Pro+
Capacity(g) 110 110 110 110
Accuracy (g) 0.001 0.0001
Sensor HBM EFBS
Display 7-inch touch screen
Open Chamber Manual Automatic Automatic Automatic
Calibration External External External Internal
Min Weight (g) 0.004 0.0004
Moisture Readability 0.01% 0.001%
Temp. Range 40~200℃ (230℃ optional)  1℃ step
Stable Time ≤3s
Pan Size Φ96mm
Operation Temp. 5-35℃
Test Mode Standard/Automatic/Mild/Customization
Stop Mode Automatic/Manual/Timming/Step/Aiming
Heat Unit Halogen Lamp
Output RS232, USB (Optional)
Storage 200 datas,200 test reports
Other Functions 1. Information input: Sample name/company/contact information

2. Adminstor/Operator Authorization/password

3. Time, date/ 200 groups data storage and review

4. Built-in test protocols

5. Various size of lables for printing

6. WIFI/Remote cloud services (Optional)

7. Chinese/English switch

8. GLP/GMP fromat storage

9. One-key preheating/calibration

10. Setting the cycle for automatic calibration (T7 Pro+ only)

11. Automatic door opening

12. Ultra-quite fan

Application
