• Replace traditional button operation to touch screen interface.
• It can display on time performance curve. You can check the temp., humidity (option) and CO2 concentration three group curves changes at the same time. And abnormal alarm and door open or close message.
• When parameters are set, the controller will lock the screen automatically, it avoid unauthorized person wrong operation on the machine.
• 72 hours machine performance inquiry, it is convenient for user to check abnormal situation and track historical running information.
• RS-485 communication port as options can be remote control on computer for monitoring the running and start or close the machine.

• You may need to open door frequently during experiment, infrared sensor is the best choice under this circumstances. Our infrared sensor is very sensitive to CO2 concentration varies and it will be not affected by inside of incubator chamber conditions, measured accurately. It doesn’t like traditional thermal probe that will be sensitive to chamber temp., and humidity that lead to incorrect CO2 concentration data.
• If open the door for 30s and close the door, within 3 min the CO2 concentration can resume to the set value 5%. Even if there are many people use the same machine and frequently open and close door, the inside chamber can still maintain CO2 concentration stable and uniform.

A. Incubator temperature control system

• PT100 temp. sensor keeps inside chamber temperature accurate. It can adjust the heating power according to the temp. differences between actual temp. in the chamber and set temp. to make sure temp. in the chamber is accurate. It can resume experiment temp. in 3 min after user open and close door to take samples.

B. Water jacket heating system

• Water jacket heating method to ensure working chamber temperature is uniform, when it is power off, the chamber can maintain the temp. for a long time.

C. Door heating system

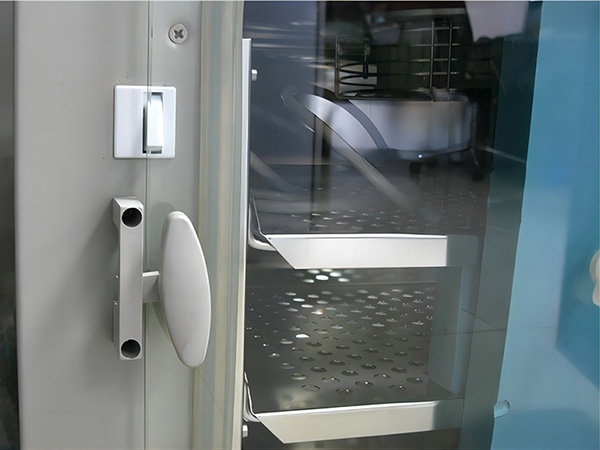

• Outer door ring has heating function. The temperature of door ring will be a little bit higher than temp. in the chamber to prevent condensed water coming from the inner glass door. It facilitates observe the experiment process, also it avoid the biological pollution possibility due to the condensed water from the inner glass door.

D. Over temp. protection system

• It is an independent backup temp. control system besides the CO2 incubator temp. control system. When the incubator temp. control system failed and caused temp. lose control, the chamber temp. reaches to the over temp. limiter set value, over temp. protection system will cut down the heating and alarm audible with light.

All data can be stored through RS485 port, if any failures, user can read the diagnostic message and data from computer at any time.

A. Ultraviolet sterilization

• The ultraviolet lamp is placed at the back top of the chamber. It can sterilize the chamber regularly. It kills chamber recycle air bacteria and float bacteria from water tray or slop water in the bottom, effectively prevent pollution during cell culture period.

B. HEPA efficient filters

• The CO2 gas quality is a important factor to judge cell culture in the CO2 incubator. HEPA high efficient filters can filter bacteria and dust in the air. It eliminates cross contamination from outer air to incubator chamber air and keep the chamber inside aseptic. Close the door for 5 min, inside air can fast resume to hundred grade clean. HEPA air filter is easy to disassemble without any special instruments.

C. Micro biological HEPA filter

• CO2 access port equips micro biological HEPA filter, it can filters diameter ≥0.3um Particles like CO2 gas bacteria and dust, the efficient reaches to 99.99%.

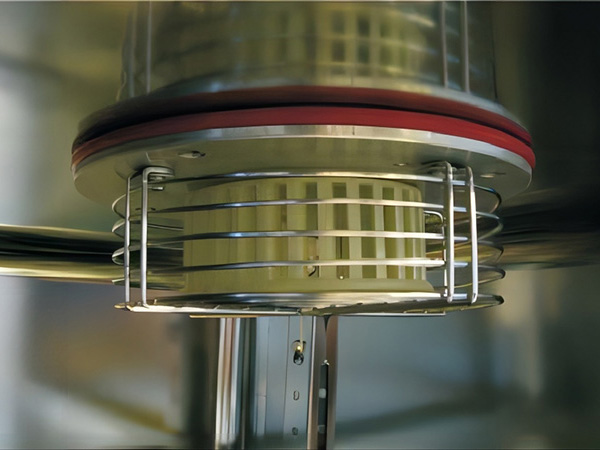

Cycle fan speed can be adjusted automatically. When chamber temp. is stable, the fan speed will be lower down, the speed will be adjusted to a suitable speed that the cell can growth. It avoids the fast fan speed that evaporating the samples.

• We supply pressure release valve together with the equipment. It can control the pressure stable.
• The system has pressure protection function, it prevents over pressure or low pressure to the pipes.

• High and low temp. and over temp. alarm
• Chamber sensor failure alarm
• Door temp. sensor failure alarm
• Over temp sensor failure alarm
• CO2 condensation too high or too low alarm
• Independent temp. limiter alarm
• Door open too long alarm
• Disinfection and sterilization status reminder
